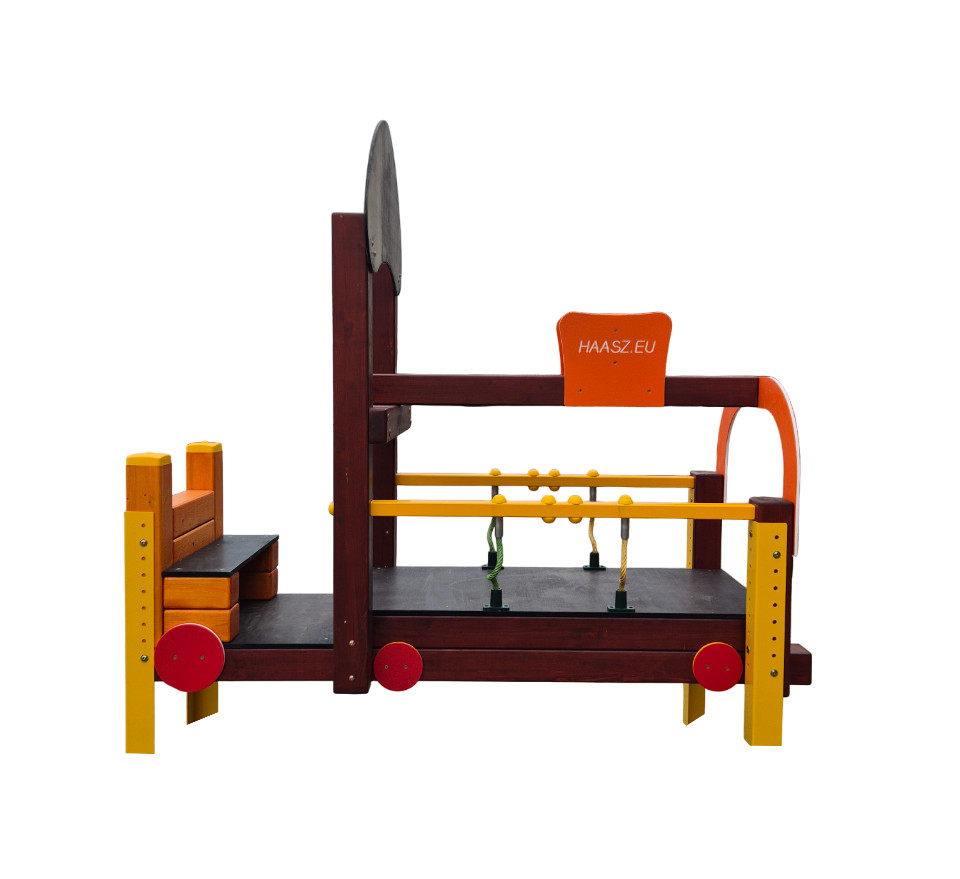

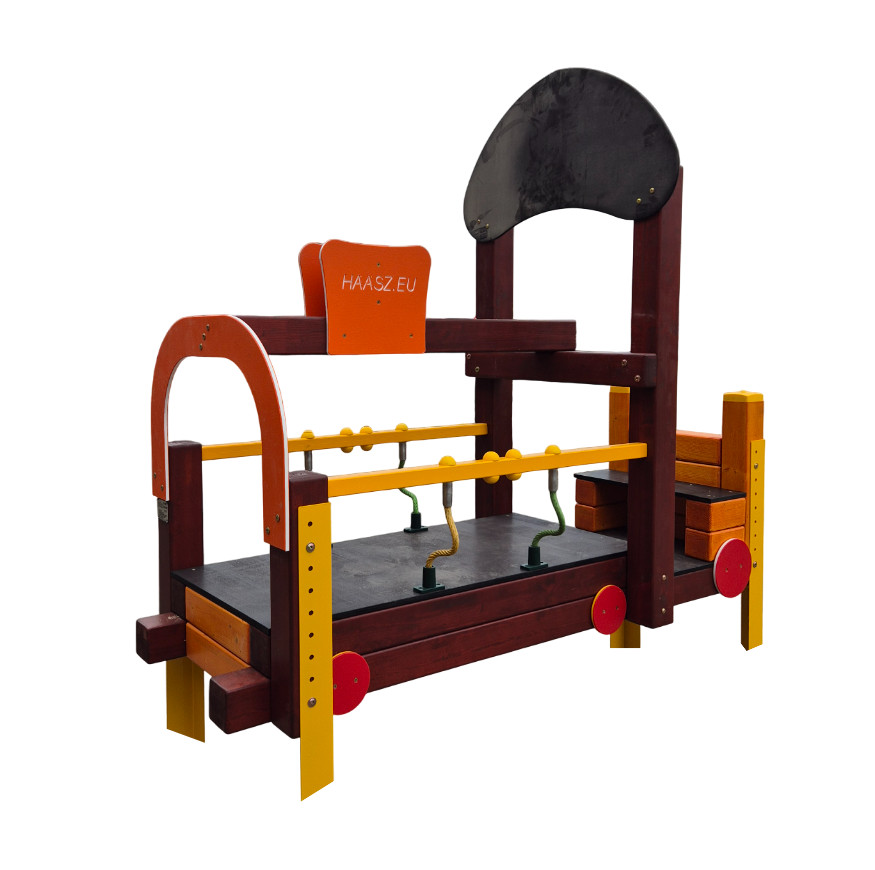

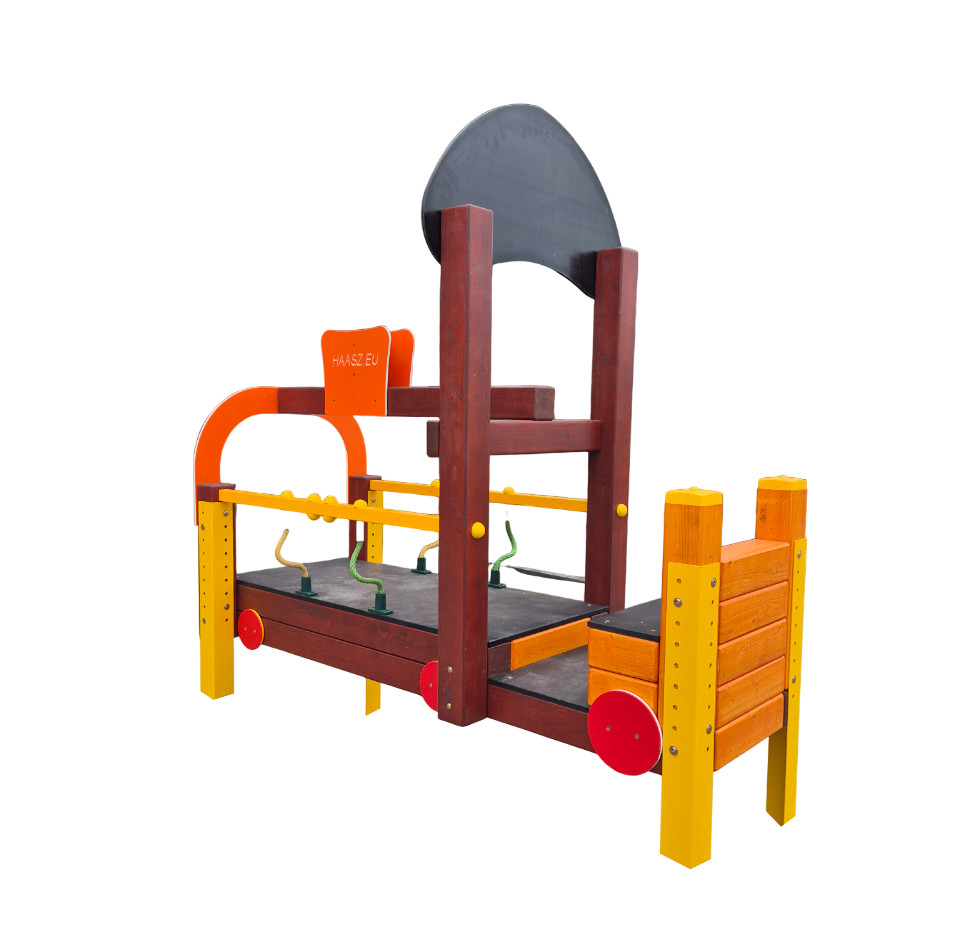

Play Locomotive
Product code: H-1227
Product features:
Locomotive-shaped structure made of waterproof plywood, laminated pine, and powder-coated colorful components, connected to galvanized, powder-coated legs fixed into the ground with concrete.
The product complies with MSZ EN 1176-1:2018 standards and is certified for playground use.
Materials and structural design
- Support legs: Bent sheet carbon steel with powder coating, securely fixed to the wooden structure. A buffer ensures that the wood does not come into direct contact with the ground, preventing rot. Attached with a minimum of four long steel bolts. Primed and powder-coated, using the most modern and eco-friendly surface treatment for corrosion protection.
- Wooden parts: Laminated pine beams of visible quality, technically dried and finger-jointed. Structural weaknesses and optical defects are removed. Meets DIN EN 14080:2013 standards, strength class GL24h. Boards are AB quality, free from loose or black knots. All surfaces are planed, sanded, splinter-free, and rounded.
- Surface treatment: Eco-friendly, highly resistant to weather conditions, UV-resistant, treated with two layers of water-based wood stain and a natural antifungal agent.
Installation:
The equipment is fixed by concreting the powder-coated steel support legs. When preparing the concrete foundation, ensure that it finishes at least 20 cm below ground level.
- Fall height: 0 cm (According to MSZ EN 1777, no additional shock-absorbing surface such as sand or rubber tiles is required; well-maintained grass provides adequate protection.)
- Fall zone: 18.5 m²
