Metal Zip Line

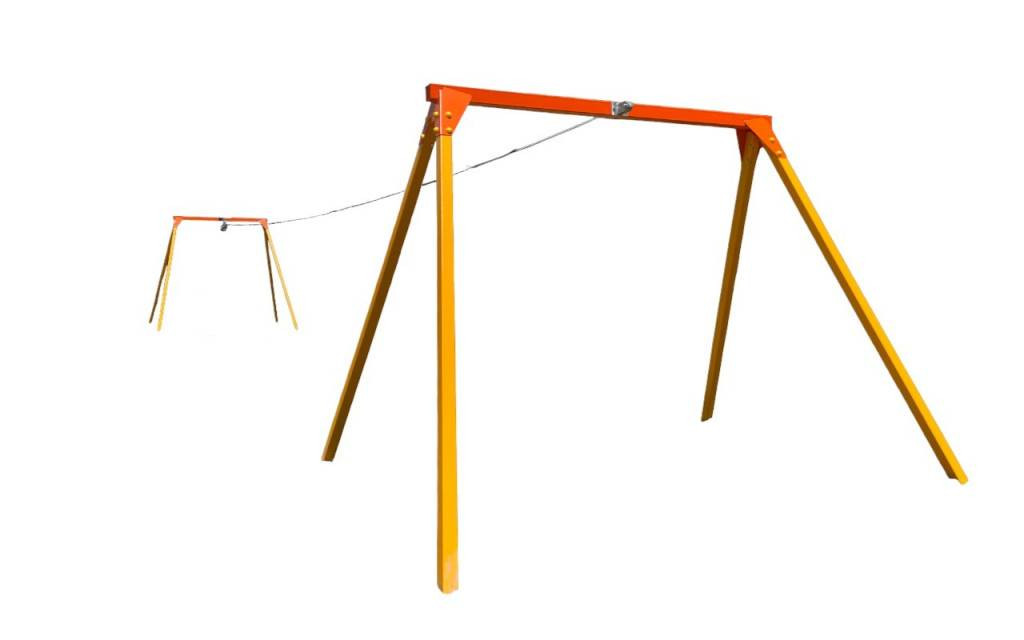

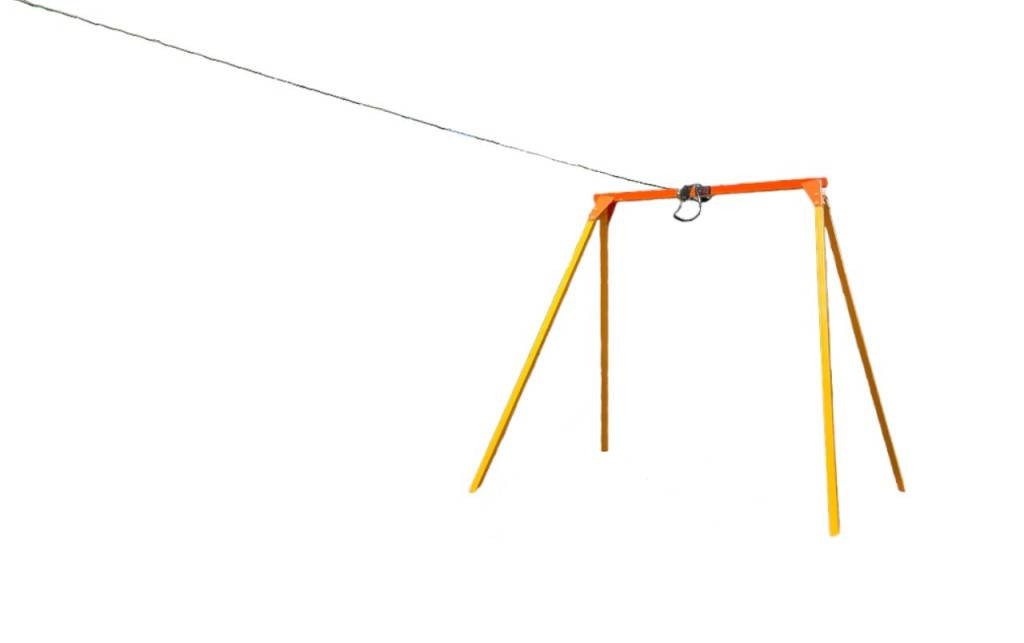

The zip line consists of a starting platform and an arrival platform, both designed to be installed on mounds of different heights. From the higher starting point, the child grabs the disc seat between their legs, lifts their feet, and glides along the 23-meter-long cable. At the end, they safely slow down by hitting the shock-absorbing spring, then roll slightly back towards the middle of the track.
The supporting structures of both the starting and arrival platforms are made of powder-coated metal with concrete-fix legs. The seat has an aluminum core with a flexible rubber cover, and the chain set is made of 5 mm small-link chains to prevent finger pinching. The cable tension can be adjusted with consideration for thermal expansion, while the sliding trolley is equipped with an automatic brake to ensure safe use. The tensioning system and shock-absorbing spring are made of galvanized steel parts, and the sliding unit is made of stainless steel.
Recommended primarily for older children, ages 3–14.
Materials and structural design:
- Support legs made of powder-coated stainless steel tubes
- Seat with aluminum insert and flexible rubber coating
- Sliding unit made of stainless steel
- Tensioning system and shock-absorbing spring made of galvanized steel parts
Standards:
The product complies with MSZ EN 1176-1:2018 and MSZ EN 1176-4:2017+AC standards and comes with full playground safety certification.
